Funkwerk Avionics USA




Compact, lightweight, high-tech and high-performance aircraft radios and transponders manufactured in Germany.





ATR833-LCD
radio



ATR833-OLED
radio



TRT800H-LCD
transponder



TRT800H-OLED
transponder







Funkwerk Avionics GmbH is the German manufacturer of advanced-design
compact aircraft radios and transponders and other avionics.

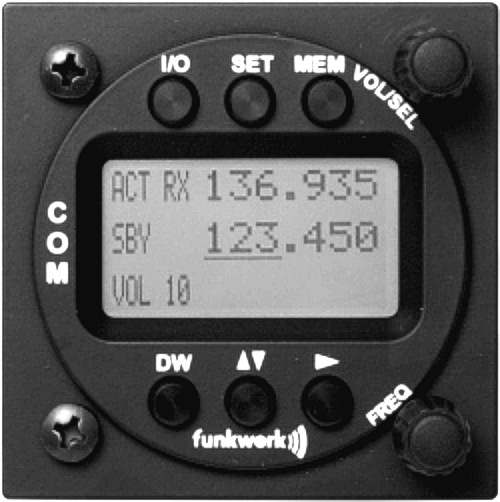

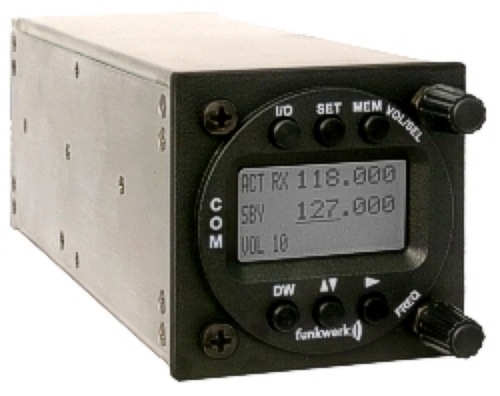

  Funkwerk ATR833-LCD radio-intercom


The ATR833-LCD is a complete solution for radios in small aircraft with the new channel separation of 8.33kHz. The channel spacing can be switched between 25kHz and 8.33kHz. The built-in VOX-controlled intercom operates up to 4 microphones and all headsets are separately adjustable. The user can define up to 100 named frequencies to build up an own database. All stored frequencies can be searched via name. The ATR833-LCD transceiver fits in a standard 2.25" instrument panel hole and is 6.3" long (without connectors -- allow 2" for connectors and cables).



Features:
    760 channel VHF transceiver
    compact - fits in 2.25" round hole in instrument panel
    dual-watch technology, simultaneous monitoring of two frequencies
    fast alphanumeric database search
    built-in VOX intercom for up to 4 microphones
    memory for up to 100 user-definable named frequencies
    full 6W carrier output
    auto TX cut-out after 2 minutes
    German quality -- full two-year warranty

Technical Data:
    frequency range: 118.00MHz - 136.975MHz
    8.33kHz/25kHz channel spacing
    HF output power approx 6W
    audio output power approx 4W
    weight: approx 1 lb 9 oz
    power consumption: approx 120mA standby; 1.8A during transmission
    power supply: 10.5V 14V
    supplied with connector; optional pre-wired harness available


    ATR833-LCD list price... $1645.00
  special price... $1495.00
    BSKS833T wiring harness
  with prewired headset sockets
  (does not include PTT switches)... $250.00

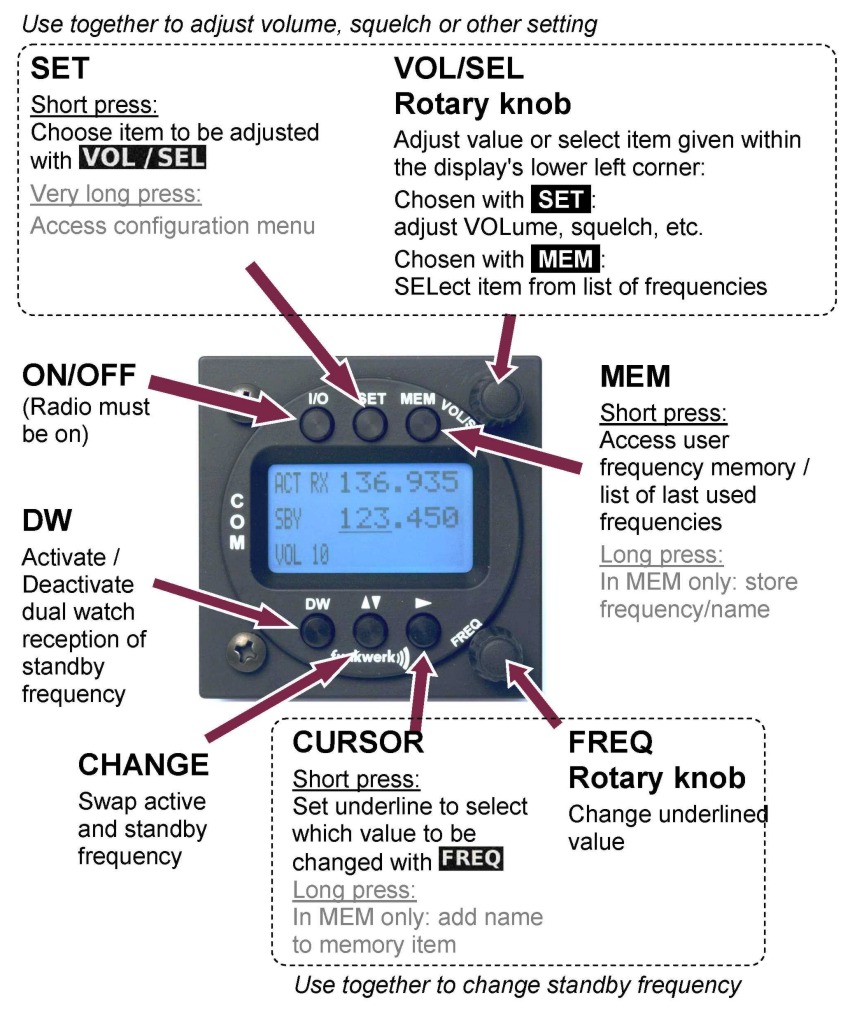

    ATR833-LCD controls/functions diagram... atr833-lcd-controls.jpg
  ATR833-LCD brochure... atr833-lcd-flyer.pdf
  ATR833-LCD operation & installation manual... atr833-lcd-manual.pdf
  dealer and aircraft manufacturer inquiries invited





also available for ATR833-LCD...
ATR600RT-LCD Remote Control Unit... $595.00
ATR600RT-LCD manual... atr600rt-lcd-manual.pdf

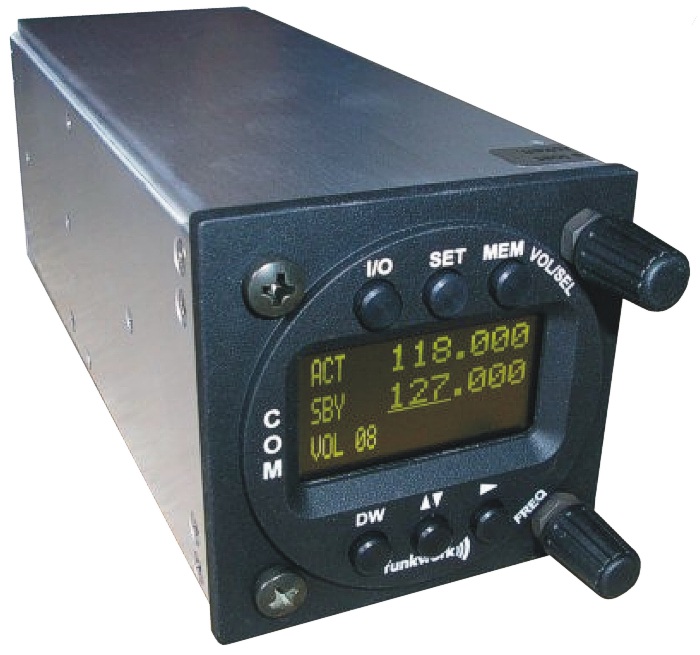

  Funkwerk ATR833-OLED radio-intercom


The ATR833-OLED is a complete solution for radios in small aircraft with the new channel separation of 8.33kHz. The channel spacing can be switched between 25kHz and 8.33kHz. The built-in VOX-controlled intercom operates up to 4 microphones and all headsets are separately adjustable. The user can define up to 100 named frequencies to build up an own database. All stored frequencies can be searched via name. The OLED-display gives perfect readability under all lighting conditions. The ATR833-OLED transceiver fits in a standard 2.25" instrument panel hole and is 6.3" long (without connectors -- allow 2" for connectors and cables).



Features:
    760 channel VHF transceiver
    compact - fits in 2.25" round hole in instrument panel
    OLED display for best readability under all conditions
    dual-watch technology, simultaneous monitoring of two frequencies
    fast alphanumeric database search
    built-in VOX intercom for up to 4 microphones
    memory for up to 100 user-definable named frequencies
    full 6W carrier output
    auto TX cut-out after 2 minutes
    German quality -- full two-year warranty

Technical Data:
    frequency range: 118.00MHz - 136.975MHz
    8.33kHz/25kHz channel spacing
    HF output power approx 6W
    audio output power approx 4W
    weight: approx 1 lb 9 oz
    power consumption: approx 150mA standby; 1.8A during transmission
    power supply: 10.5V 14V
    supplied with connector; optional pre-wired harness available


    ATR833-OLED list price... $1795.00
  special price... $1649.00
    BSKS833T wiring harness
  with prewired headset sockets
  (does not include PTT switches)... $250.00

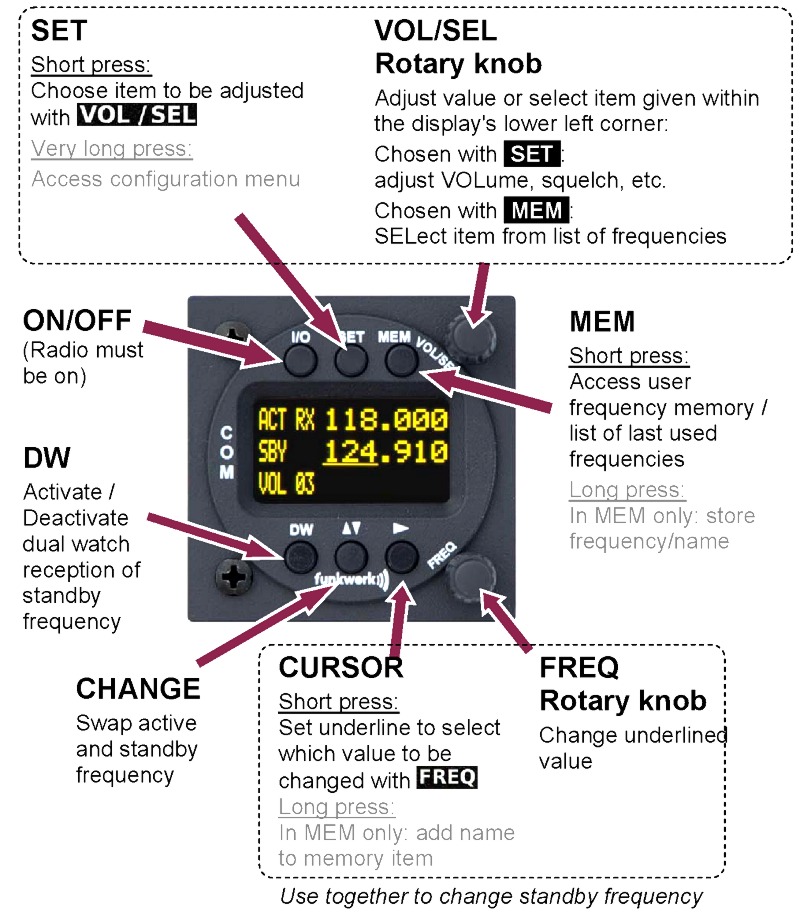

    ATR833-OLED controls/functions diagram... atr833-controls.jpg
  ATR833-OLED brochure... atr833-flyer.pdf
  ATR833-OLED operation & installation manual... atr833-oled-manual.pdf
  dealer and aircraft manufacturer inquiries invited





also available for ATR833-OLED...

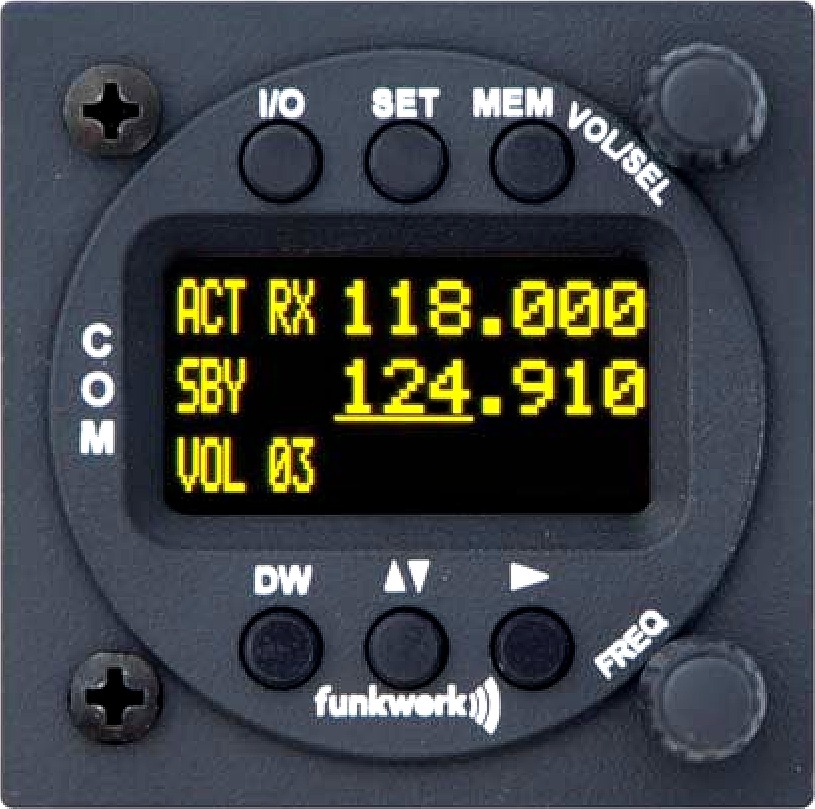

ATR600RT-OLED Remote Control Unit... $645.00
ATR600RT-OLED manual... atr600rt-manual.pdf

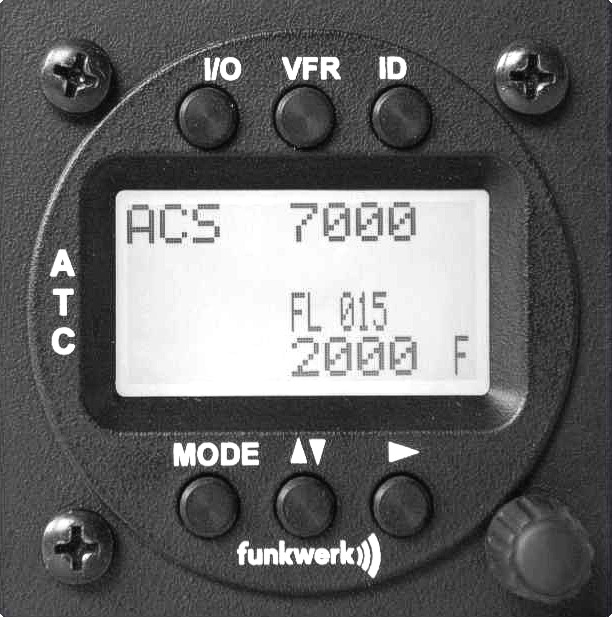

  Funkwerk TRT800H-LCD Mode-S transponder-encoder




The TRT800H-LCD is a 250 watt Mode-S transponder-encoder for all aviation applications from ultralight aircraft to gliders, light sport aircraft, experimental aircraft, and General Aviation aircraft. It offers classical A/C modes of operation plus full Mode-S support.

The TRT800H-LCD advantages are small dimensions and a built-in altitude encoder. The wiring harness is included which helps make installation extremely simple and easy. These features also reduce installation cost and weight. The TRT800H-LCD may be used up to 35,000 ft actual operating altitude and a maximum true airspeed 250 knots.

The TRT800H-LCD has an LCD display -- and makes an excellent companion to our ATR833-LCD radio.



Features:
    250 watt, full featured, EASA certified Class 1 transponder
    4-line OLED display show active and stand-by code
    FAA certified for VFR and IFR operation
    operating modes: Mode A/C, Mode-S
    integrated altitude encoder up to 35,000 ft
    fits in standard 2.25" round instrument panel hole
    easy operation
    German quality -- full two-year warranty

Technical Data:
    dimensions: 2.25" x 2.25" x 6.3"
    weight: 1 lb 4 oz
    power supply voltage: 13.75v DC
    typical current draw: <300mA
    transmitter power at antenna connector: 250w
    compliance: EUROCAE ED-73B, CS-ETSO-2C112a Class 1
    supplied with wiring harness and TNC connector


    TRT800H-LCD list price...$2575.00
      special price... $2295.00

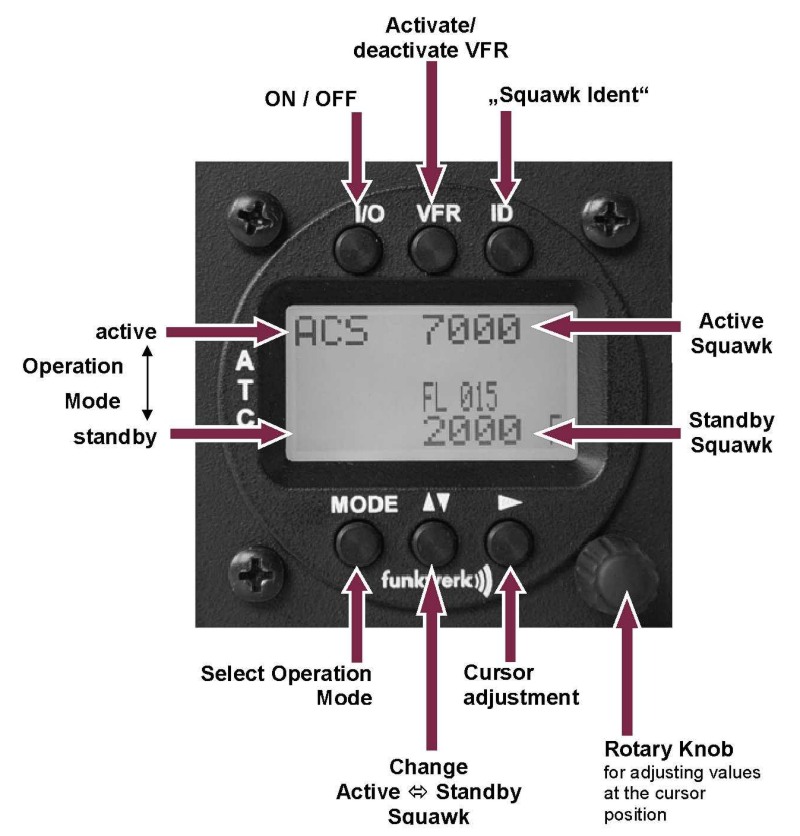

    TRT800H-LCD controls/functions diagram... trt800h-lcd-controls.jpg
  TRT800H-LCD brochure... trt800h-lcd-flyer.pdf
  TRT800H-LCD operation & installation manual... trt800h-lcd-manual.pdf

    dealer and aircraft manufacturer inquiries invited




also available for TRT800H-LCD...
TRT800RT-OLED Remote Control Unit... $595.00
TRT800RT-LCD manual... trt800rt-manual.pdf

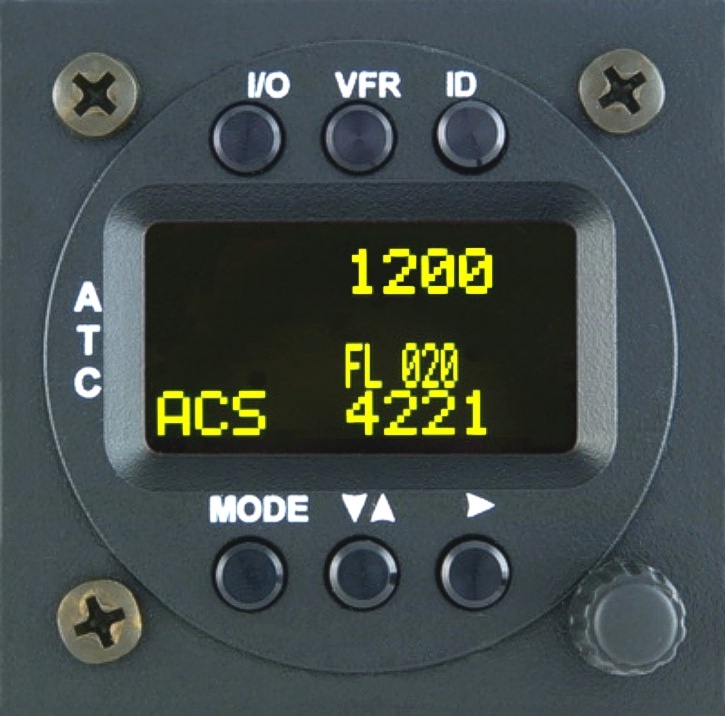

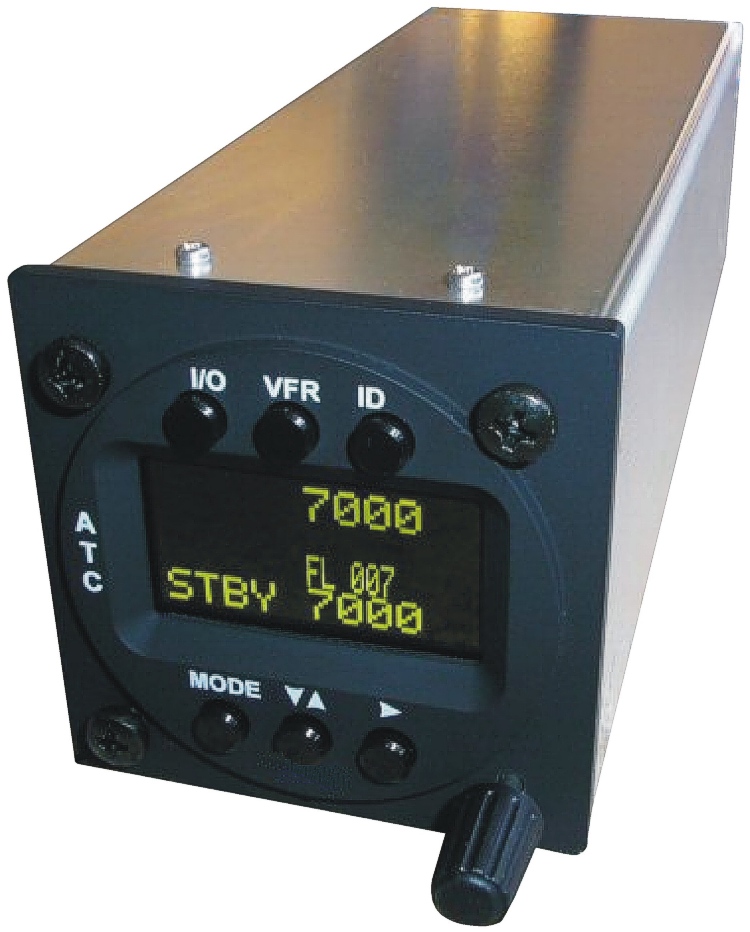

  Funkwerk TRT800H-OLED Mode-S transponder-encoder


The TRT800H-OLED is a 250 watt Mode-S transponder-encoder for all aviation applications from ultralight aircraft to gliders, light sport aircraft, experimental aircraft, and General Aviation aircraft. It offers classical A/C modes of operation plus full Mode-S support.

The TRT800H-OLED advantages are small dimensions and a built-in altitude encoder. The wiring harness is included which helps make installation extremely simple and easy. These features also reduce installation cost and weight. The TRT800H-OLED may be used up to 35,000 ft actual operating altitude and a maximum true airspeed 250 knots.

The TRT800H-OLED has a high-tech, easy-visibility OLED display -- and makes an excellent companion to our ATR833-OLED radio.



Features:
    250 watt, full featured, EASA certified Class 1 transponder
    4-line OLED display show active and stand-by code
    FAA certified for VFR and IFR operation
    operating modes: Mode A/C, Mode-S
    integrated altitude encoder up to 35,000 ft
    fits in standard 2.25" round instrument panel hole
    easy operation
    German quality -- full two-year warranty

Technical Data:
    dimensions: 2.25" x 2.25" x 6.3"
    weight: 1 lb 4 oz
    power supply voltage: 13.75v DC
    typical current draw: <300mA
    transmitter power at antenna connector: 250w
    compliance: EUROCAE ED-73B, CS-ETSO-2C112a Class 1
    supplied with wiring harness and TNC connector


    TRT800H-OLED list price...$2820.00
      special price... $2495.00

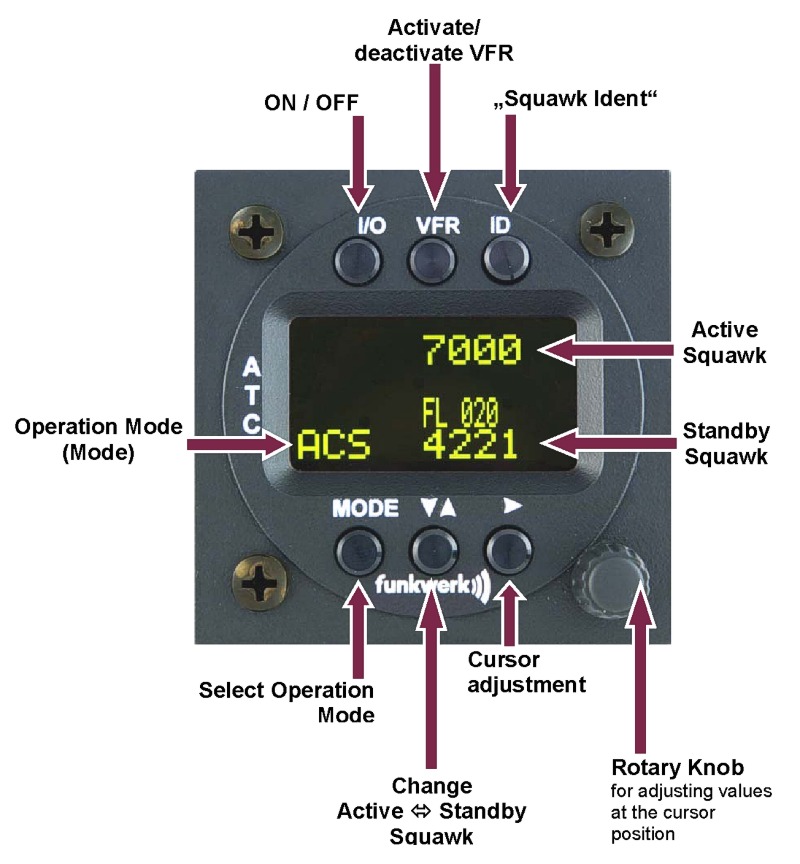

    TRT800H-OLED controls/functions diagram... trt800h-controls.jpg
  TRT800H-OLED brochure... trt800h-flyer.pdf
  TRT800H-OLED operation & installation manual... trt800h-manual.pdf

    dealer and aircraft manufacturer inquiries invited




also available for TRT800H-OLED...
TRT800RT-OLED Remote Control Unit... $645.00
TRT800RT-OLED manual... trt800rt-manual.pdf



  Funkwerk radio-transponder combinations





The ATR833-OLED radio and TRT800H-OLED transponder-encoder radio/transponder combination at a special combo-price...

        ATR833-OLED radio................................ $1649.00
        TRT800H-OLED transponder-encoder....   2495.00
            regular total cost.............. $4144.00
                  special combo price....... $3995.00


The ATR833-LCD radio and TRT800H-LCD transponder-encoder radio/transponder combination at a special combo-price...

        ATR833-LCD radio................................ $1495.00
        TRT800H-LCD transponder-encoder....   2295.00
            regular total cost.............. $3790.00
                  special combo price....... $3695.00

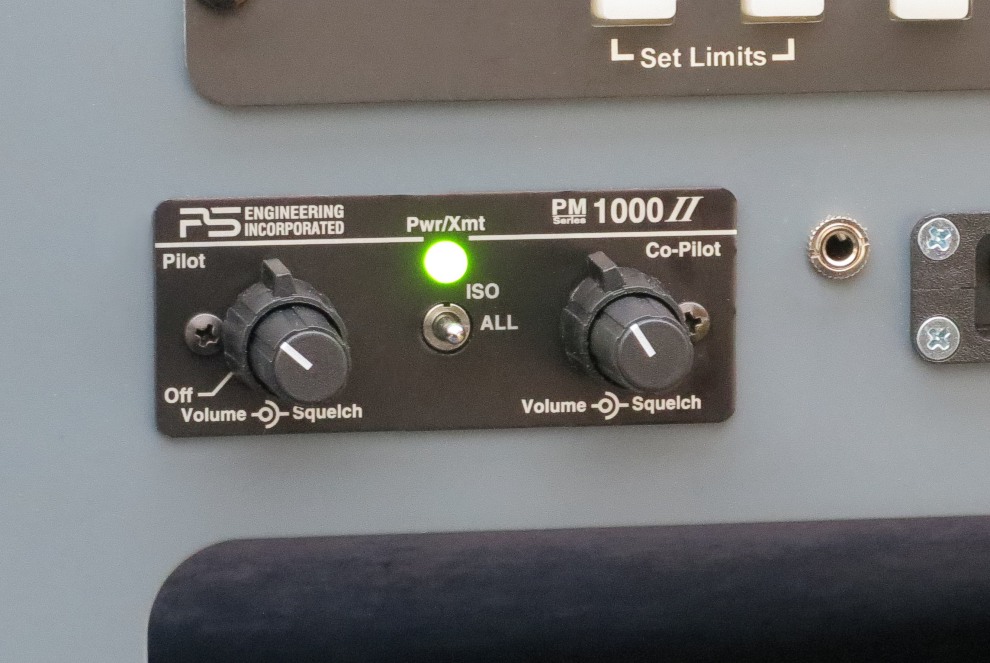

  Funkwerk radios with PM1000II intercom





The Funkwerk radios include a built-in VOX intercom that provides good performance in most aircraft. However, for the very best intercom performance in the widest-variety of aircraft, we recommend the U.S.-manufactured PS Engineering PM1000II panel-mount intercom. We have the intercom available with a prewired wiring harness to provide quick, easy and reliable installation...

        PM1000II intercom............................. $295.00
        radio-intercom prewired harness........   155.00
            total cost........... $450.00



Funkwerk Avionics GmbH is part of the German Funkwerk Group which develops and produces professional communication systems used in various areas of transportation. Further information can be found at www.funkwerk-avionics.com. Funkwerk Avionics GmbH is an EASA approved production and maintenance organization (EASA Part 21G/Part 145). It develops, produces and sells avionics equipment and avionics system solutions in the areas of communication, navigation and displays as well as offering the TRT Mode-S transponders and ATR-series VHF radios for general aviation.

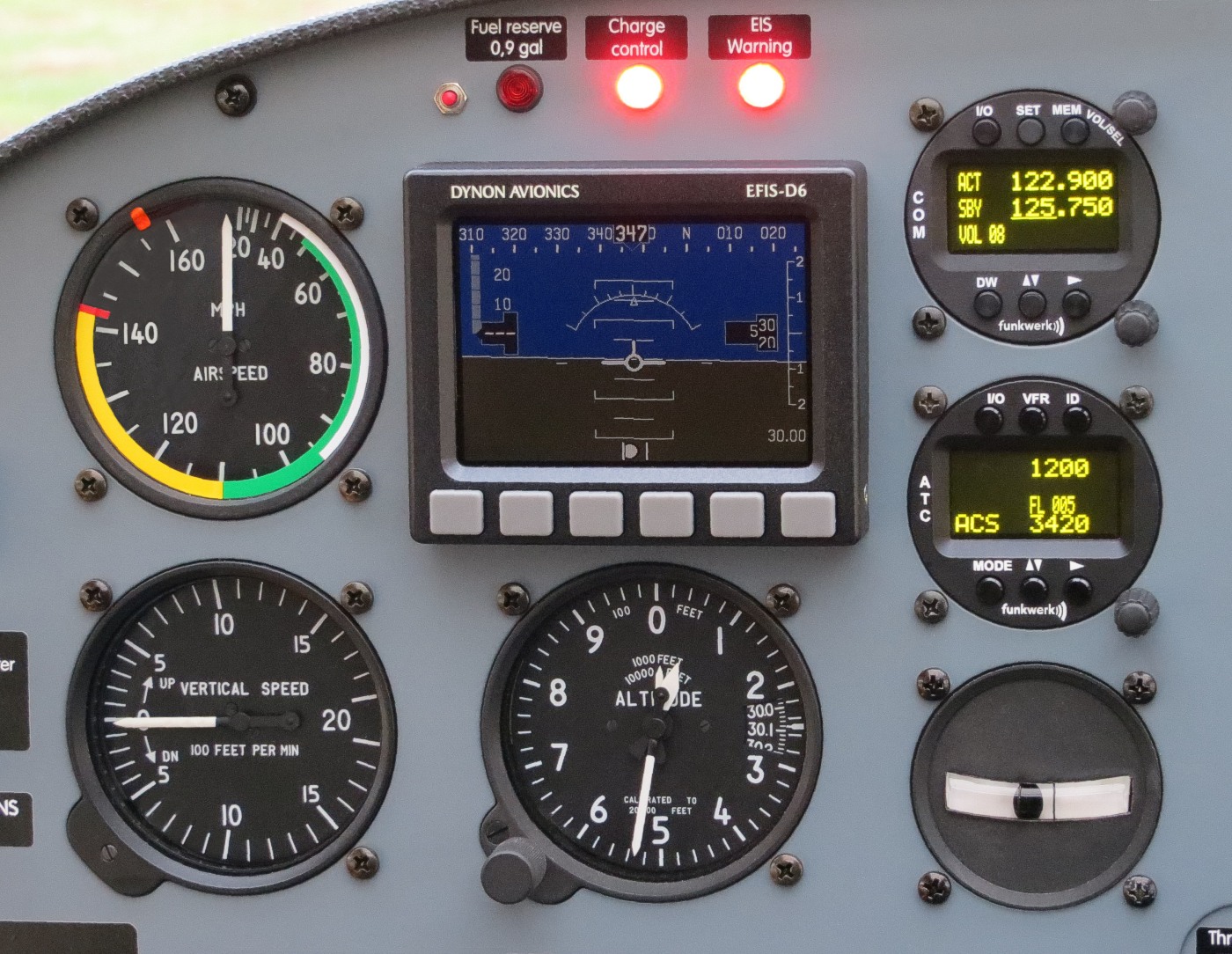

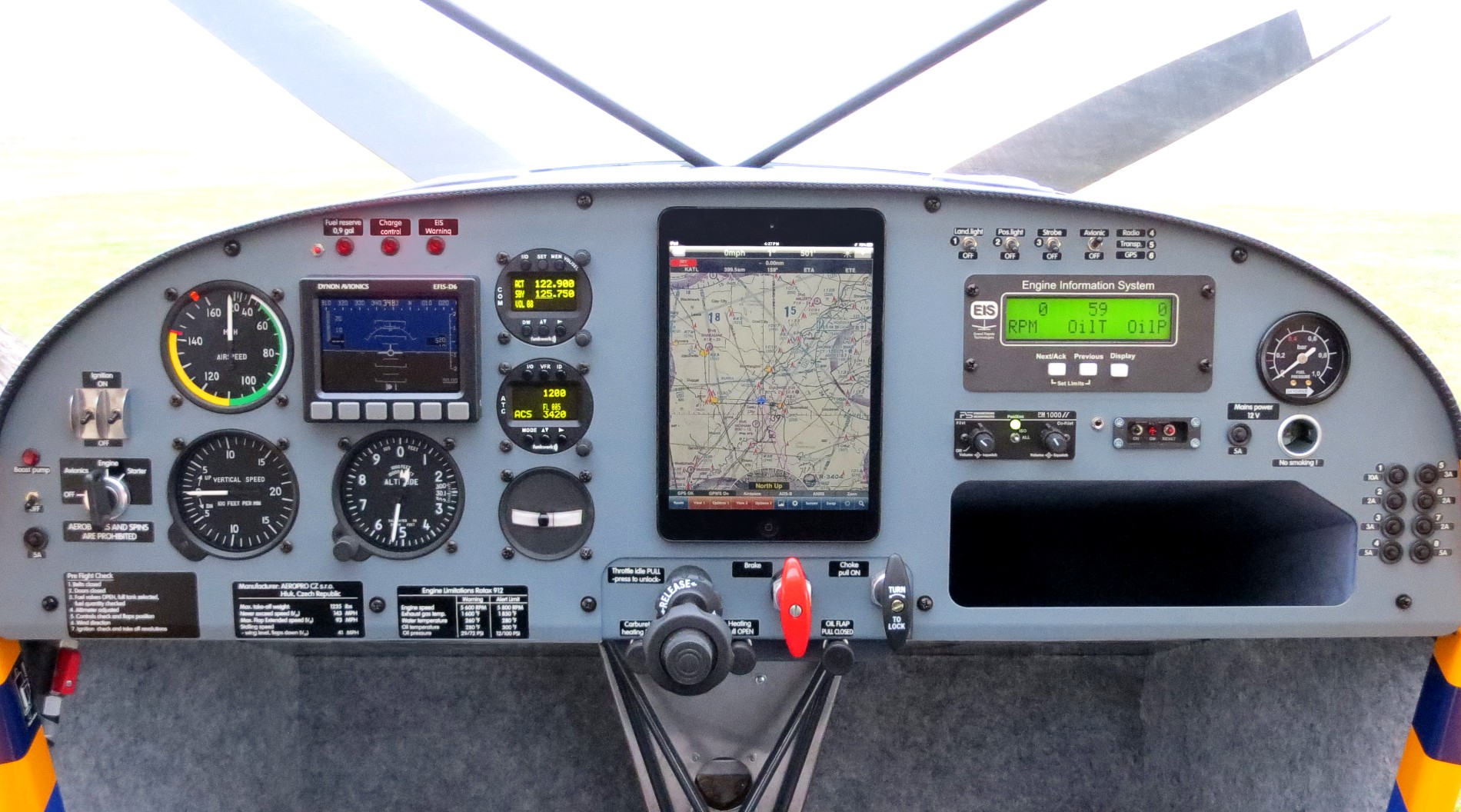

      In our Aerotrek light-sport aircraft we use the ATR833-OLED radio, TRT800H-OLED transponder-encoder, and PM1000II intercom. In our experience, this is the very best equipment for our aircraft. The Funkwerk Avionics radio and transponder OLED displays have a high-tech look and provide great visibility in all lighting conditions.
      The ATR833-OLED radio has the "dual watch" feature (so the standby frequency can also be monitored) which is very useful and improves safety in many situations. The PM1000II is a great intercom with separate volume and squelch controls, so each person can makes adjustments to have what works best for him -- and with the PM1000II intercom when one person talks only that one mic goes "hot" which minimizes background noise (almost all other intercoms have at least twice as much background noise because with those other intercoms when one person talks both mics are hot).



      The TRT800H-OLED is a high-performance (250w) transponder with digital flip-flop control -- the pilot adjusts the standby squawk code and then pushes a button to switch the standby code to be the active code. This is much better than transponders that require you to adjust the active squawk code.
      Of course, one of the biggest advantages of the 2.25" round radio and transponders is they use a minimum amount of panel space and they are installed without having to install a radio or transponder "tray." The TRT800H-OLED transponder has a built-in altitude encoder and is all self-contained -- which makes installation the easiest and quickest-possible.
      The ATR833-OLED/TRT800H-OLED radio/transponder combination is top-quality German-manufactured equipment that is overall the best as well as the best-looking choice for our aircraft instrument panels.
